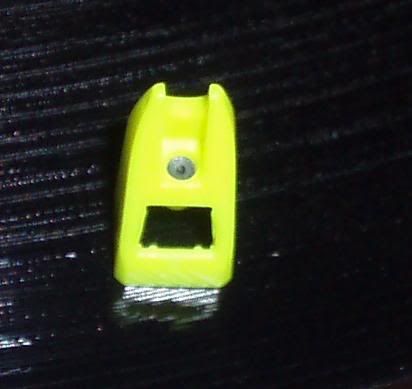

Ortofon NCE magnet pics

As I was backing up my files for me to do a fresh install on my laptop I stumbled accross these pics I took.
Check out the size of that magnet!! Thats all there is to this stylus.
The rubber suspension even comes out but I didnt take a pic of that (It's a small round rubber gromit with a hole in it which the canteliver goes through)
I hate the Night Club E sound hence why I sold it (That stylus went in the bin although you can easly put it back together, pulling the canteliver out without fucking it is the hardest part or putting back the suspension if you have taken that out too)

I dont reccomend doing this to a good stylus!! LOL

Canteliver, stylus and magnet


The suspension is still in place in this pic
__________________
--The future scares me, any chance of a lift back to the past any one?--
Reply With Quote
  #2
Old 02-17-2011, 12:09 PM
mynameismatt's Avatar
mynameismatt mynameismatt is offline
Registered User

Join Date: Mar 2004
Posts: 572
Here's what the inside of an Ortofon Concorde Pro S cart looks like. These were posted on audiokarma by someone else. I had always been curious myself..


Reply With Quote
  #3
Old 02-17-2011, 12:23 PM
Mistick Krewe Mistick Krewe is offline
Registered User

Join Date: Aug 2007
Location: hoodoo audio heaven
Posts: 1,403
almost like a p mount...

except i bet it doesn't have the clearance
to use without the rest of the body...
